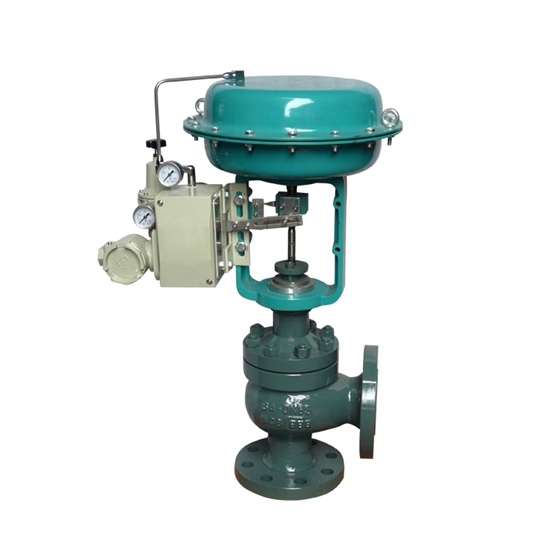

KAM series pneumatic angle type regulation valve

關注次數：

所屬類別：Quick high performance pneumatic control valve

KAM series pneumatic angle valve control valve spool is rectangular in shape, not only guide structure, the valve flow path is simple, easy cleaning and cleaning. The resistance is small, suitable for from the viscosity, regulating the particulate matter containing suspended solids and fluids, to avoid coking, adhesion, jam, automation control is widely used in petroleum, chemical industry, light industry production process.

General pneumatic angle of main technical parameters of shape adjusting valve actuator:

Model	ZM A/B -2	ZM A/B -3	ZM A/B -4	ZM A/B -5
Effective area cm2	280	400	630	1000
Trip mm	10,16	25	40	60
Spring range Kpa	20～100；40～200；20～60；60～100；80～240

KAM series pneumatic angle of main technical performance index of shape adjusting valve:

Project	Not with a locator	With a locator
The basic error %	± 5	± 1.0
The return difference%	≤ 3	≤ 1.0
The dead zone %	≤ 3	≤ 0.4
Rated stroke deviation %( Air to close )	≤ 2.5
Allow leakage L/h	≤ 110 -4 Rated capacity
